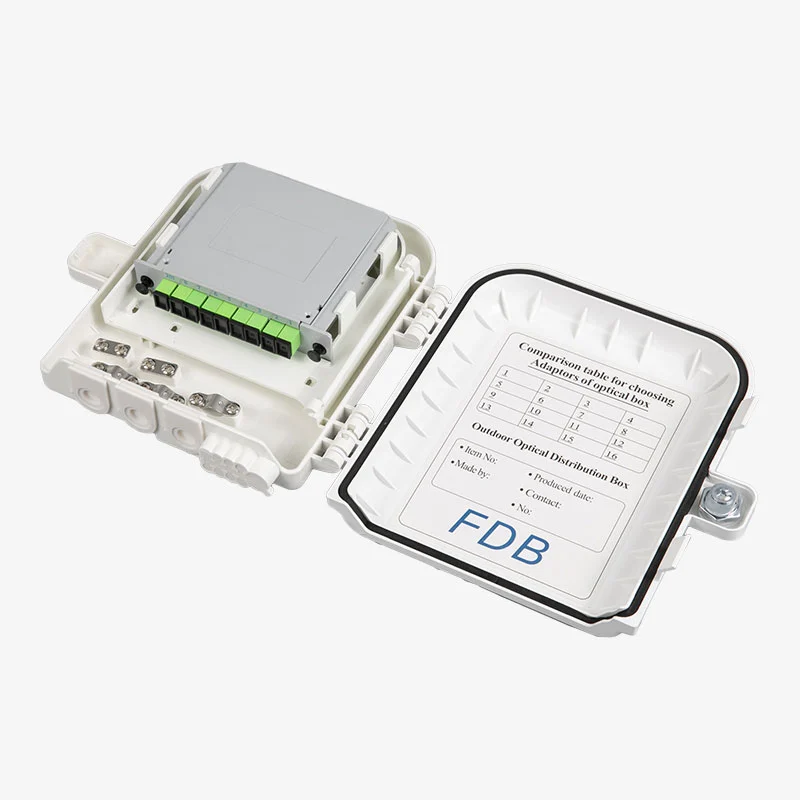

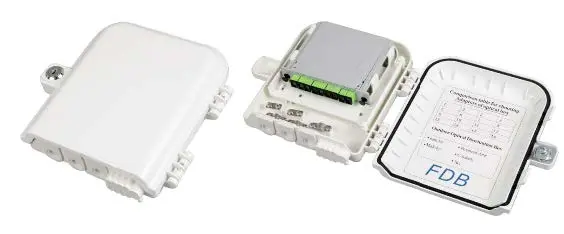

FTTH Fiber Optic Cable Splicing Box 8 Ports

Introduction of FTTH Fiber Optic Cable Splicing Box 8 Ports

The Terminal box  FTTH Fiber cable splicing, the box can used for outdoor or indoor, both can mount on the wall and Pole.The material of the box is PC/ABS alloy, with UV protection and fire retardant performance.

Specification of FTTH Fiber Optic Cable Splicing Box 8 Ports

Max. Fiber Storage：8 fibers

Adapter type:SC/APC、SC/UPC, FC

Application:FTTH cable splicing

Working temperature：-40℃～+85℃

Relative humidity：≤85%（+30℃）

 Atmospheric pressure：70KPa～106Kpa

Bending radius:≥35mm

Insertion loss：≤0.2dB

UPC return loss：≥50dB

APC return loss：≥60dB

Life of insertion and extraction:＞1000 times

Waterproof :IP65

Size:220 *200 *55mm(W*D*H)

Packing info of FTTH Fiber Optic Cable Splicing Box 8 Ports

Q’ty/Carton:   60PCS
Size of Carton:  460*460*540mm
Volume of Carton : 0.115 cbm
G.W :    20.4KGS
