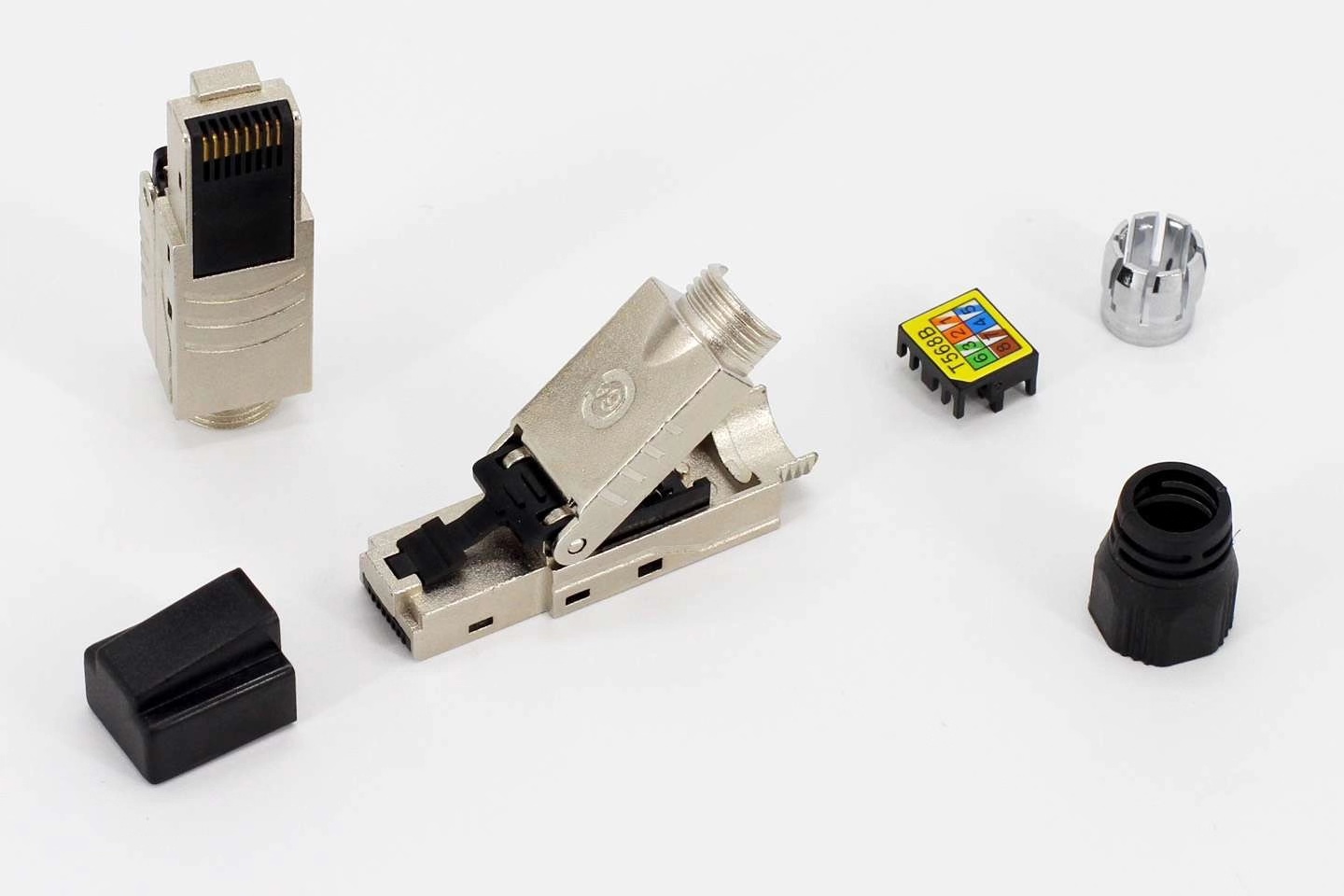

Cat.6A STP RJ45 Field Module Plug Sleeve

Basic Data of Cat.6A STP RJ45 Field Module Plug Sleeve

Product No.: CL-IPF-C6AS

Delivery Time: 15-20 days

MOQ(Neutral): 10000 Pieces

Package: Neutral or OEM Package

Payment Term: Western Union, Paypal, T/T



  • Patch Cord And Cable Assemblies CL-IPF-C6AS
  • Patch Cord And Cable Assemblies CL-IPF-C6AS

Product Detail of Cat.6A STP RJ45 Field Module Plug Sleeve

CAT6A Class Ea RJ45 plug to be assembled in the field

  • UTP&FTP TYPE: 1piece Design

  • Easy Assembly-easily terminated in the field in 2 minutes without any special tools

  • Wire Connection: Stranded wire AWG 27/7 to 22/7, wire diameter from 0.46 to 0.76 mm

  • Wire Connection: Solid wire AWG 26/1 to 22/1, wire diameter from 0.4 to 0.76 mm

  • Transmission Characteristics: CAT6A per ISO/IEC 11801 Ed.2.2:2011-06

  • Compliance with class Ea to ISO/EIC 11801 Ed.2.2.2011-06, DIN EN 50173-1:2011-09 10 GB it Suitable according to IEEE 802.3an

  • Suitable for Power over Ethernet (PoE, PoE plus, and UPoE)

  • Cable Jacket Diameter from 6 to 9.5 mm

  • Adjustable Strain Relief (6mm to 9.5mm Cable OD)

  • Load Bar for Faster and Easier Wire Pattern Termination

  • Reconnectable

Features of Cat.6A STP RJ45 Field Module Plug Sleeve

  • Operation temperature: -40℃to 60℃,Relative humidity: 85%(30℃),Air pressure: 70-106Kpa.

  • Gold Plated Phosphor Bronze Blade: phosphor bronze and gold plating (3-50uinch), mating durability not less than 750 cycles.

  • Anti-bum performance: a product made from Kirsite\PC or PCB(UL94V-0), meeting the international standard

  • Intermediate resistance: no more than 20m ohm in normal atmosphere pressure (not including bulk resistor)

  • Insulated resistance: no less than 1,000M ohm in normal atmosphere pressure

  • The intensity of anti-currency: DC 1,000V (AC,700V), no puncture and flash-over phenomenon in one minute

  • Retention strength: 7.7kg between jack and plug

  • Label: clear label to ensure easy management.
