Product No.: CL-KJ-C6A22
Delivery Time: 15-20 days
MOQ（Neutral): 2000pcs
Package: Neutral or OEM Package
Payment Term: Western Union, Paypal, T/T

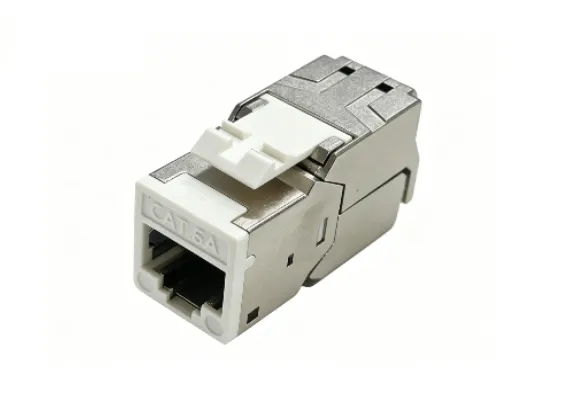

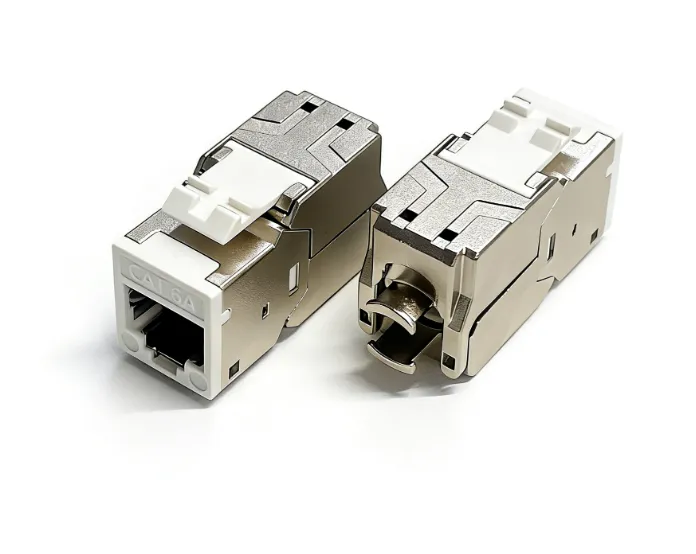

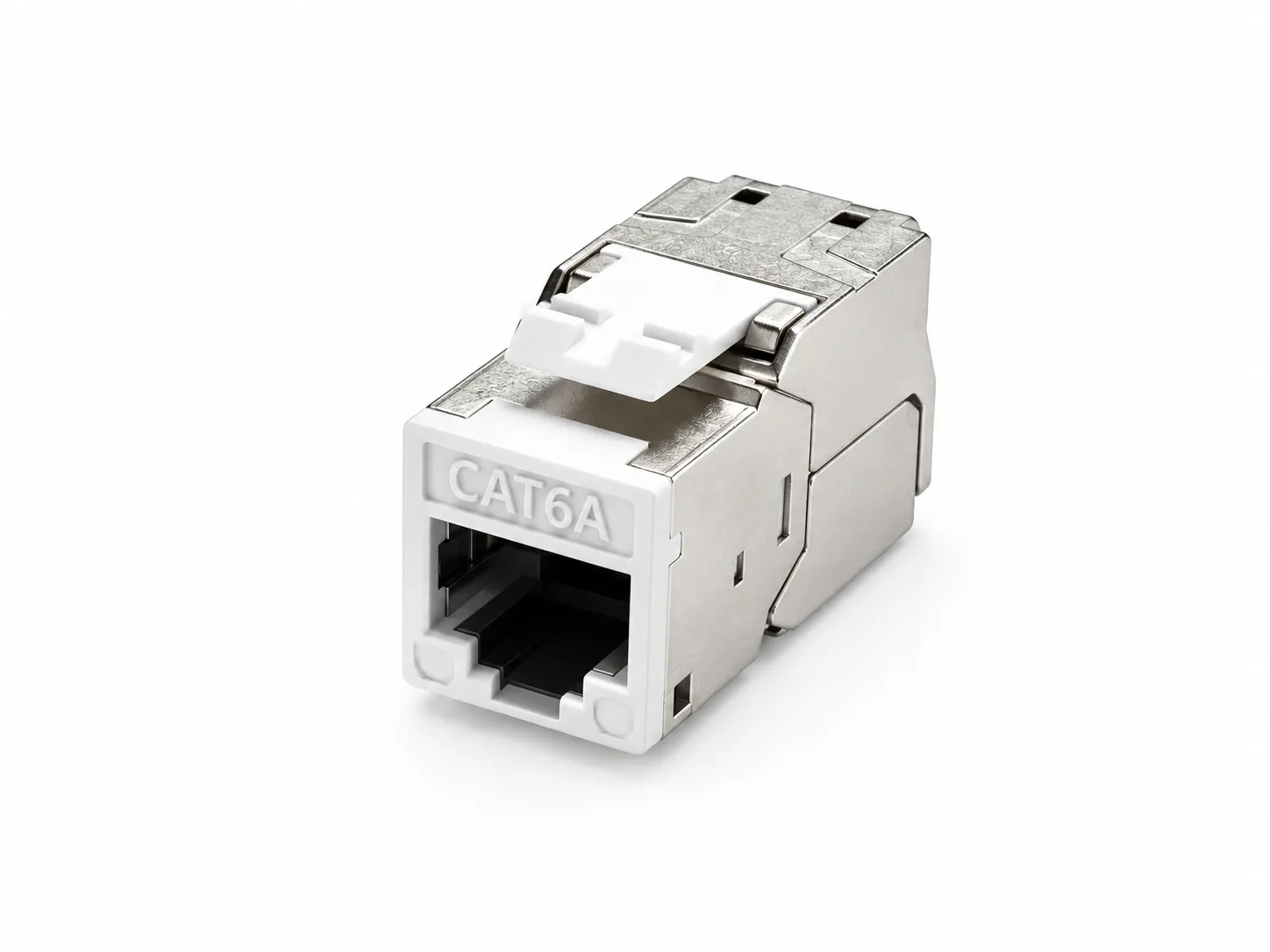

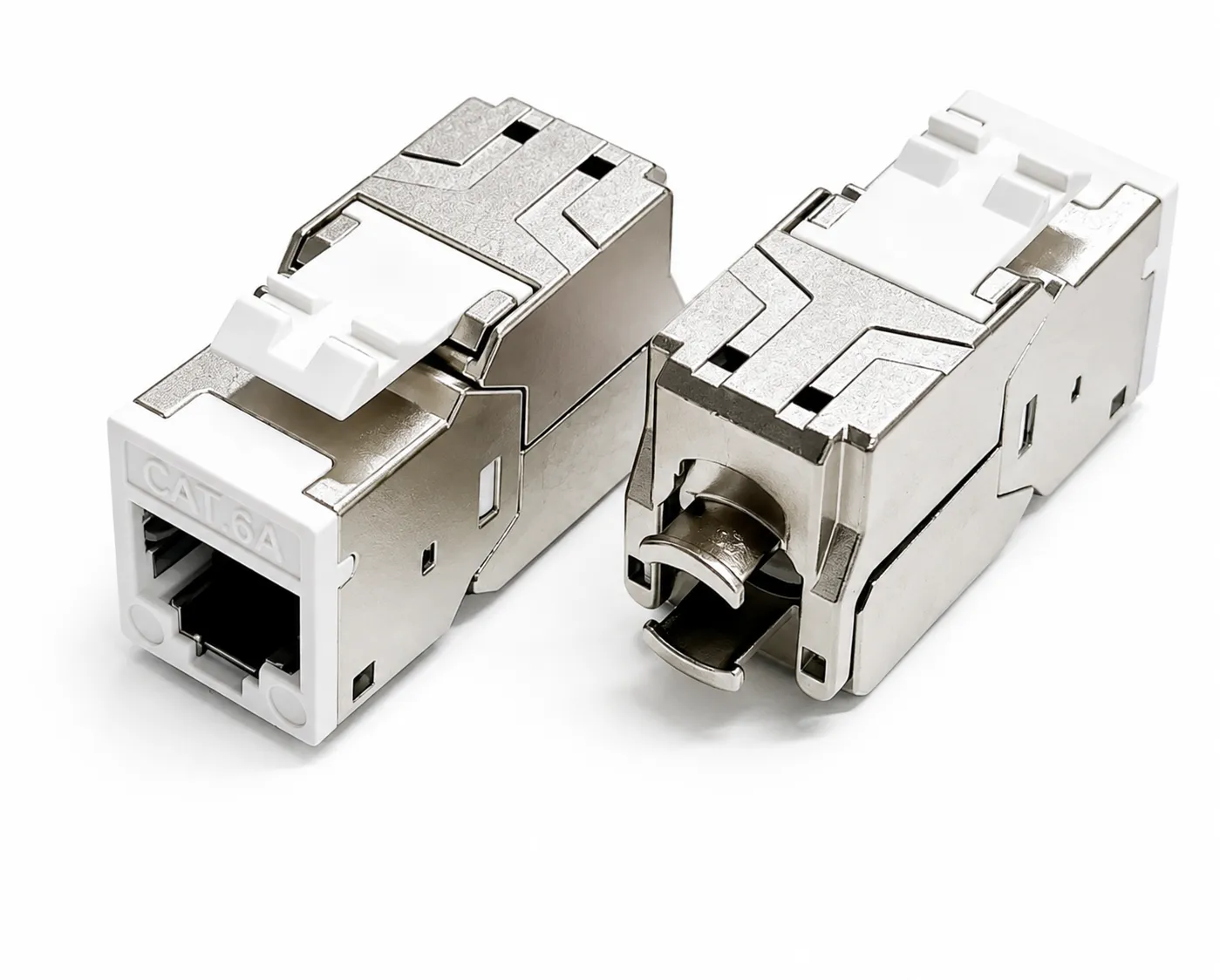

Product type | Cat.6A FTP |
Transmit capacity | 500MHz |
Wire Gauge Supported | 22-24AWG |
Housing material | PC |
Punching duration | 250 times |
RJ45 jack life | 750 times |
RJ45 contact material | Phosphor bronze |
Termination type | Toolless |
Thickness of the pin | 3μ/6μ/15μ/30μ/50μ |
Wiring scheme | T568A & T568B |
Certification | CE, UL, RoHs, ETL |
Warranty | 25 years |
PCB material: FR-4 T=1.2mm
IDC LIFE: 200 TIMES MIN
Inserting Duration: 750 times.
IDC clips: Tinned phosphor bronze pins.
IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING
Connecting: RJ45 Port for UTP Patch Cord and the IDC for UTP horizontal cabling.
Fitting for Cat.6A Cabling system, can also be used in Cat.6 and Cat.5e cabling system.
According to the standard of ISO/IEC 11801:2002 Class E&ANSI/TIA/EIA/56B2-1 Cat.6A standard.
Key Features
Full shielding structure ensures stable transmission performance;
Ultra-slim 14.5 ± 0.1 mm design fits most high-density applications;
Color-coded front frame supports easier identification and maintenance
