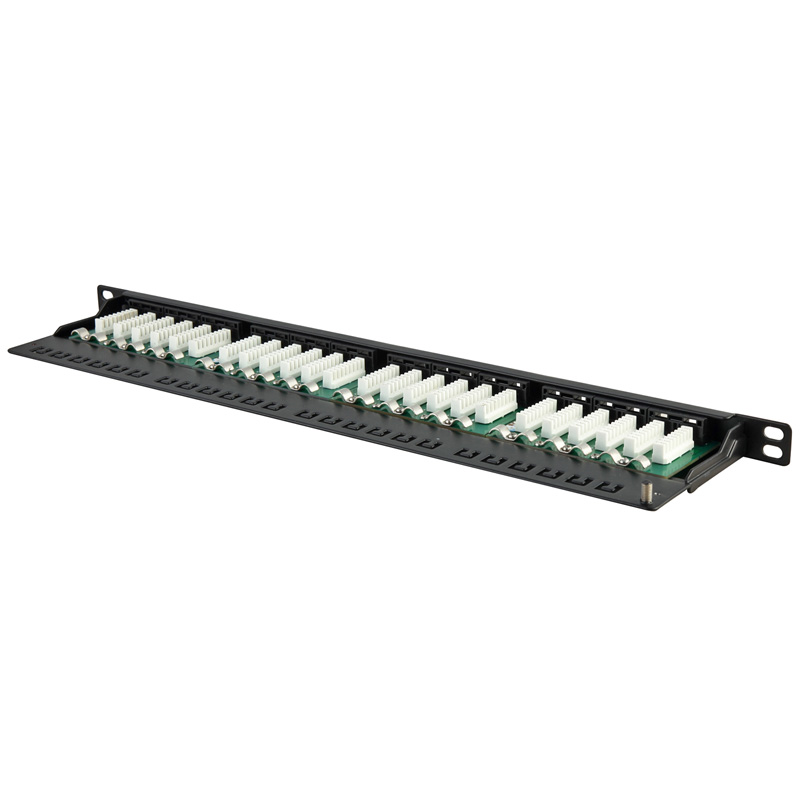

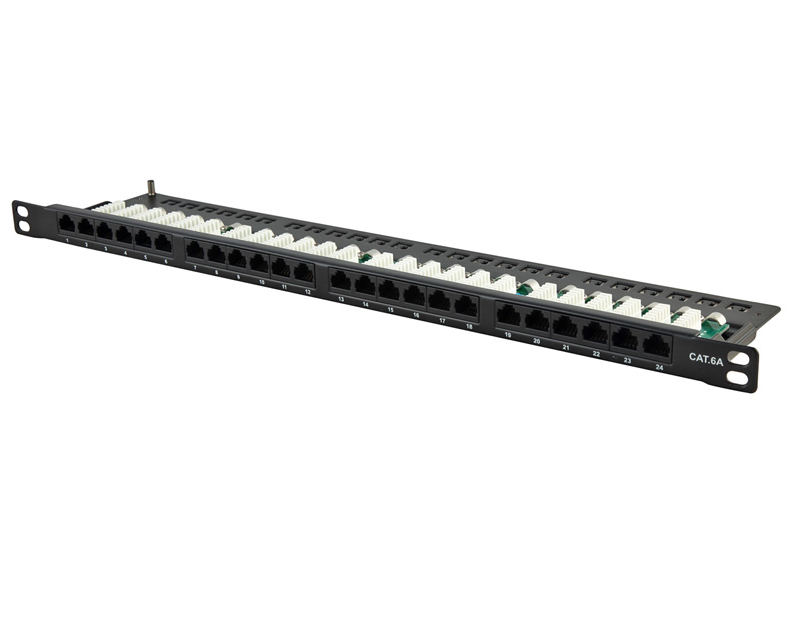

UTP 0.5u Cat.6A Patch panel 24Port

Basic Data of UTP 0.5u Cat.6A Patch panel 24Port

Product No.: CL-U24P-C6A02

Delivery Time: 15-20 days

MOQ(Neutral): 300 Pieces

Package: Neutal or OEM Packing box

Payment Term: Western Union, Paypal, T/T


  • Patch Panel CL-U24P-C6A02
  • Patch Panel CL-U24P-C6A02

Main Description of The Product of UTP 0.5u Cat.6A Patch panel 24Port


  • 0.5U 22.25mm, 50% space saved.


  • UTP Cat. 6A/Cat. 6/Cat. 5e are available


  • 24 ports patch panel, Cat.6A UTP type. The structure of each port of this Patch panel is same which makes sure that the performance of each port is Consistent.


  • According to the standard of ISO/IEC 11801: 2000 CLASS E and ANSI/TIA/EIA/568B. 2-1 Cat. 6 standard. T568A punching sequence and T568B punching sequence are both compatible. Fitting for horizontal Distribution in the equipments room and equipments connecting.


  • Connecting: FCC port for Cat.6A UTP patch cord and IDC for horizontal Distribution cables.


  • Compatibility: Compatible for UTP Cat.6A general cable Distribution systems.


  • IDC: 110 type or LSA type for your choice.


Technique Characteristics of UTP 0.5u Cat.6A Patch panel 24Port


  • Entire high-carbon steel outer frame, with plastic powder cladding.


  • RJ45 jack frame material: PBT, golden plated phosphor bronze pins, Un-Shielding shell of the RJ45 jack: Brass housing with nicket-plated; IDC clip: Tinned phosphor bronze pins.


  • Fitting for 22AWG/23AWG/24AWG cables, punching duration: 250 times. FCC ports inserting duration: 750 times.


  • Cabling sequence: T568A & B.


  • Punching tool: Standard 110 tool for 110 IDC, Standard 110 tool or LSA tool for Dual IDC.


  • Testing condition of transmitting capability: 500MHz
