Product No.:CL- FTTH-GYXTPY
Delivery Time: 15-20 days
MOQ（Neutral): 100pcs
Package: -
Payment Term: Western Union, Paypal，T/T

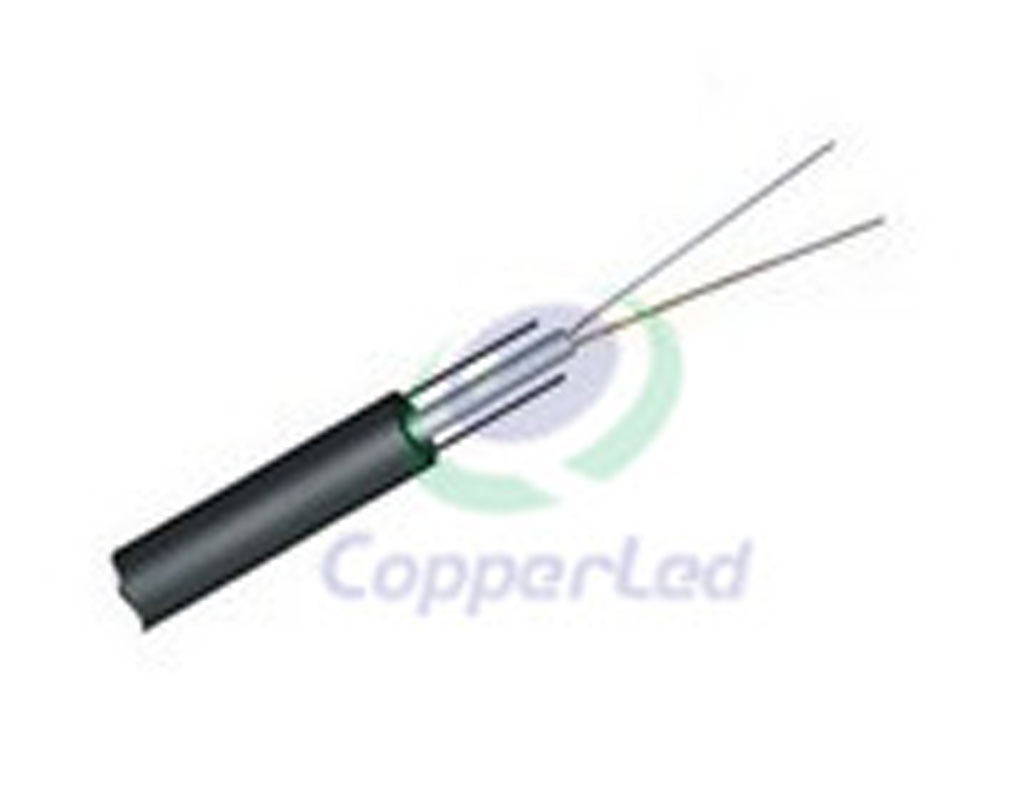

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber.
Crush resistance and flexibility.
Inexpensive and can reduce operating costs.
Two parallel steel wires ensure tensile strength.
Small diameter, light weight and friendly installation.
Long delivery length.
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Cable Type | Fiber Count | Cable Diameter | Cable Weight kg/km | Tensile Strength | Crush Resistance | Bending Radius |
GYXTPY | 1~2 | 5.6 | 34 | 500 | 500 | 10D/20D |
GYXTPY | 3~6 | 6.0 | 38 | 500 | 500 | 10D/20D |
GYXTPY | 7~12 | 6.5 | 43 | 500 | 500 | 10D/20D |
Storage/Operating Temperature : -40℃to + 70℃
