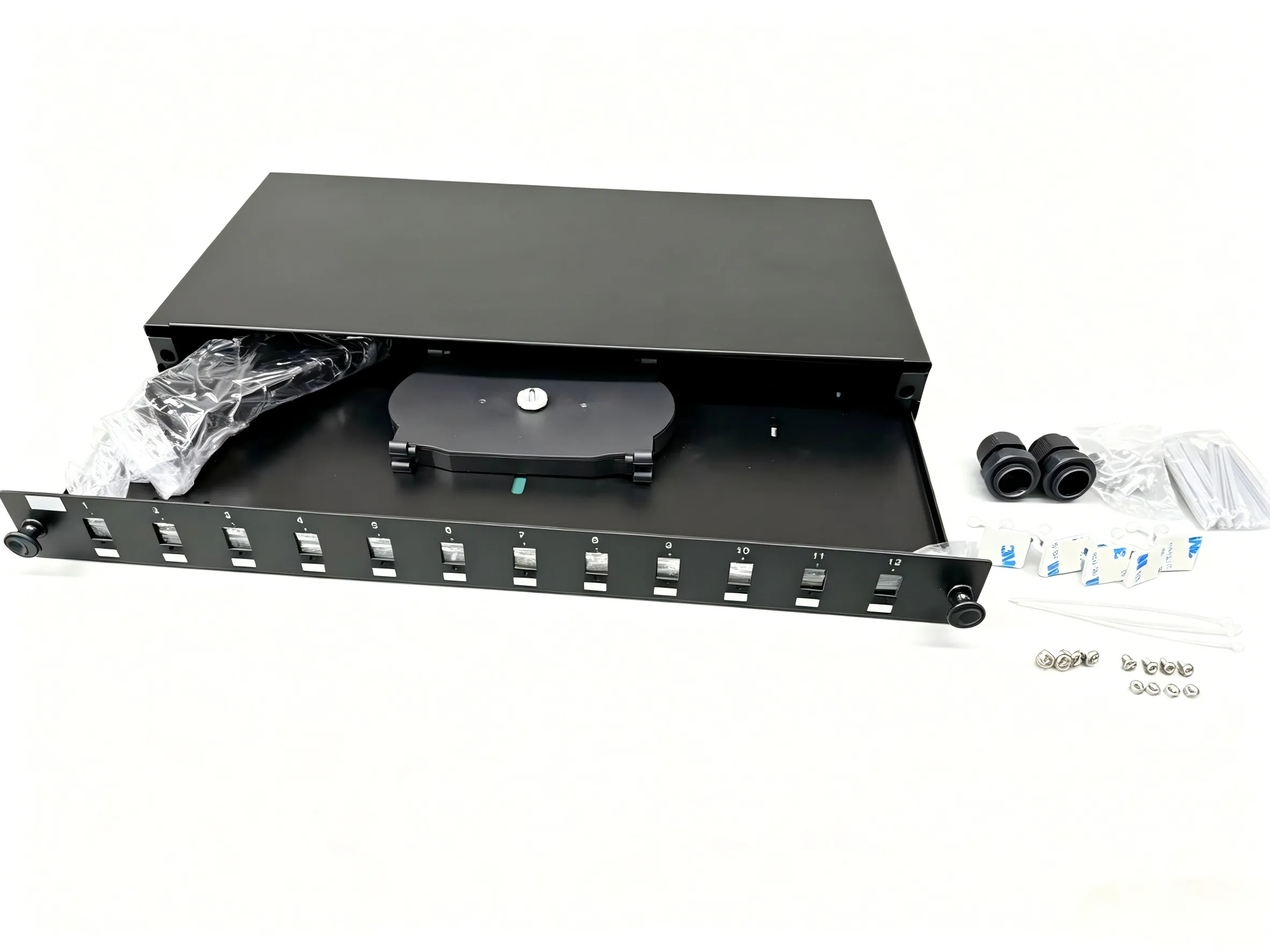

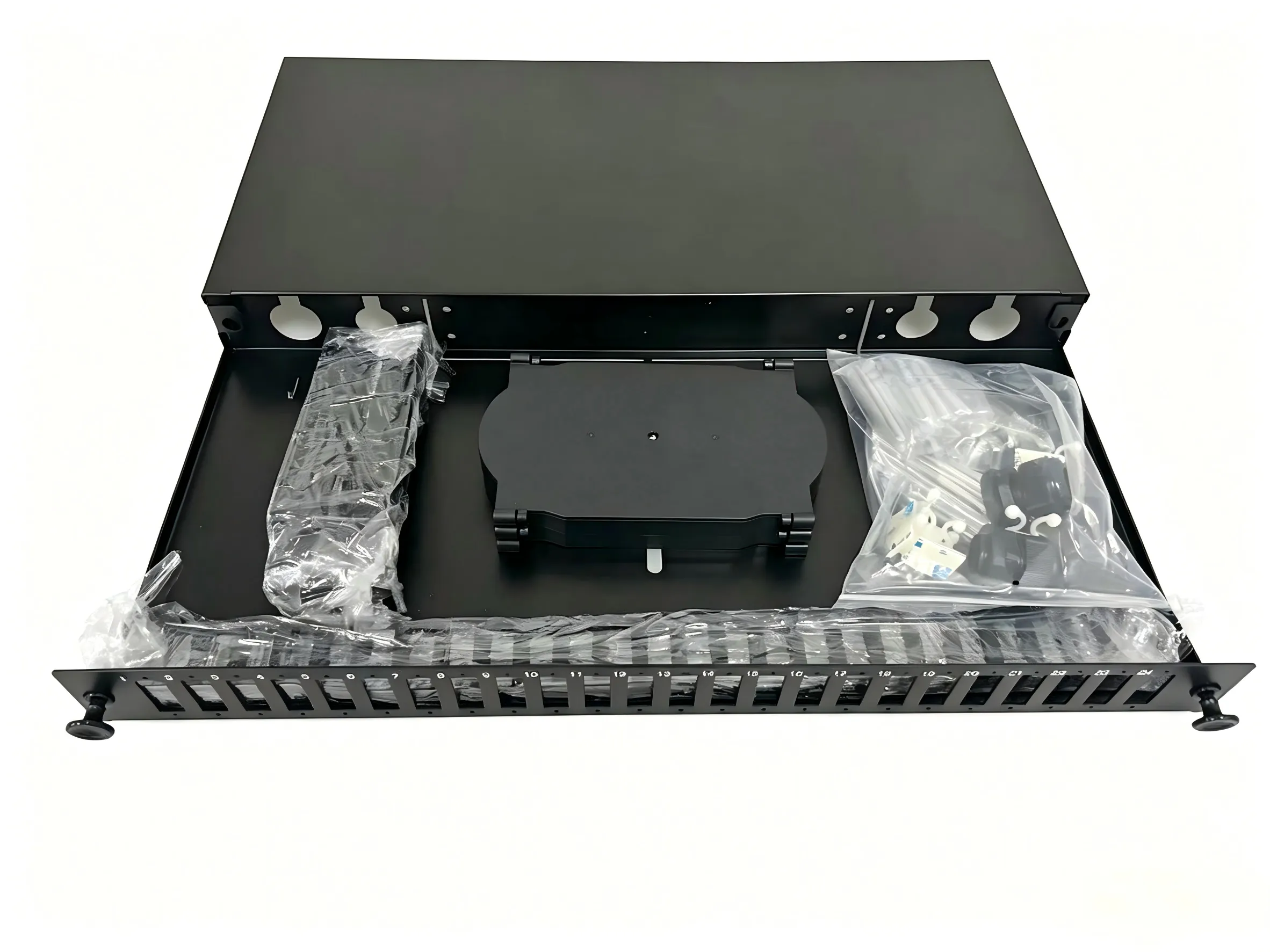

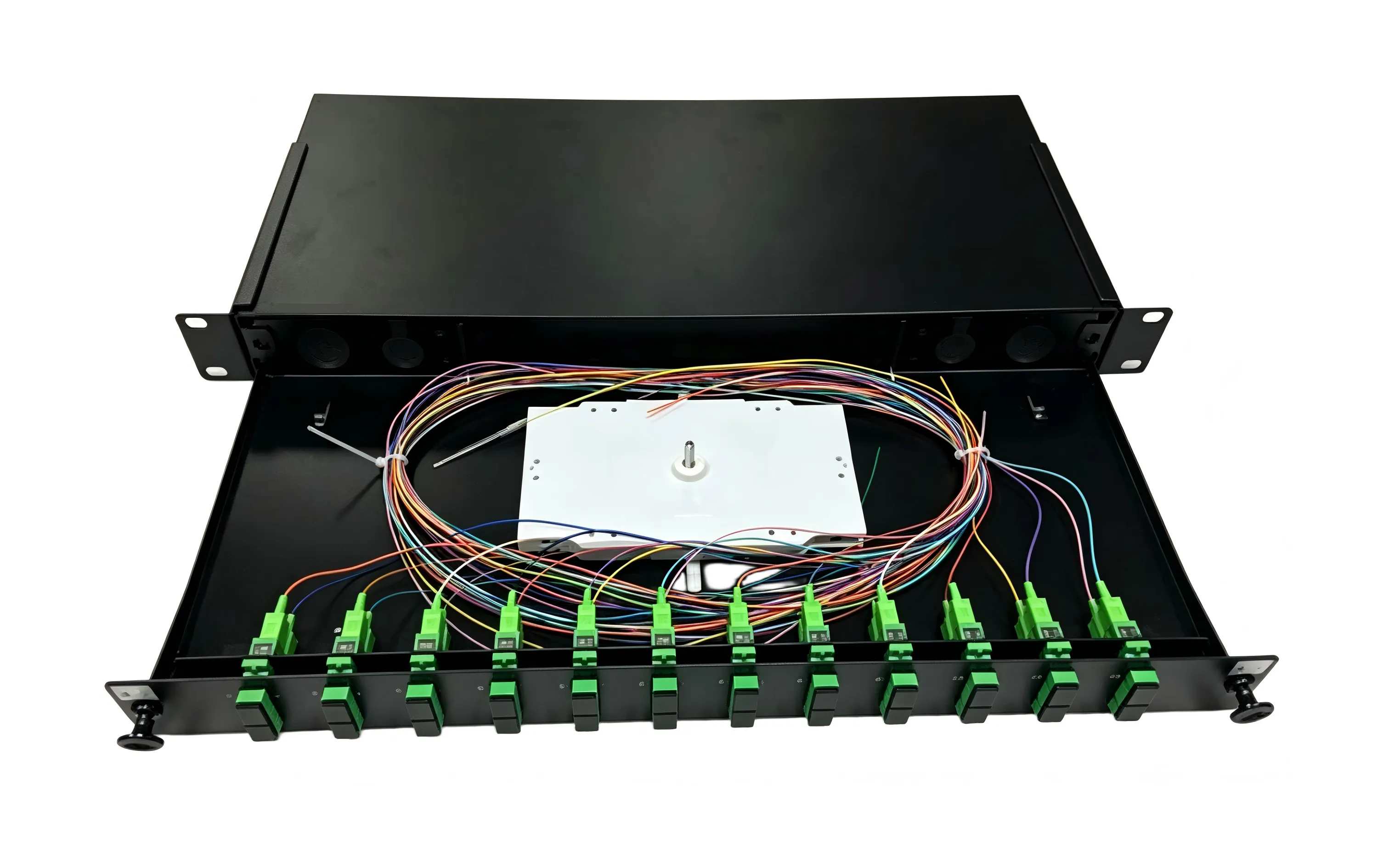

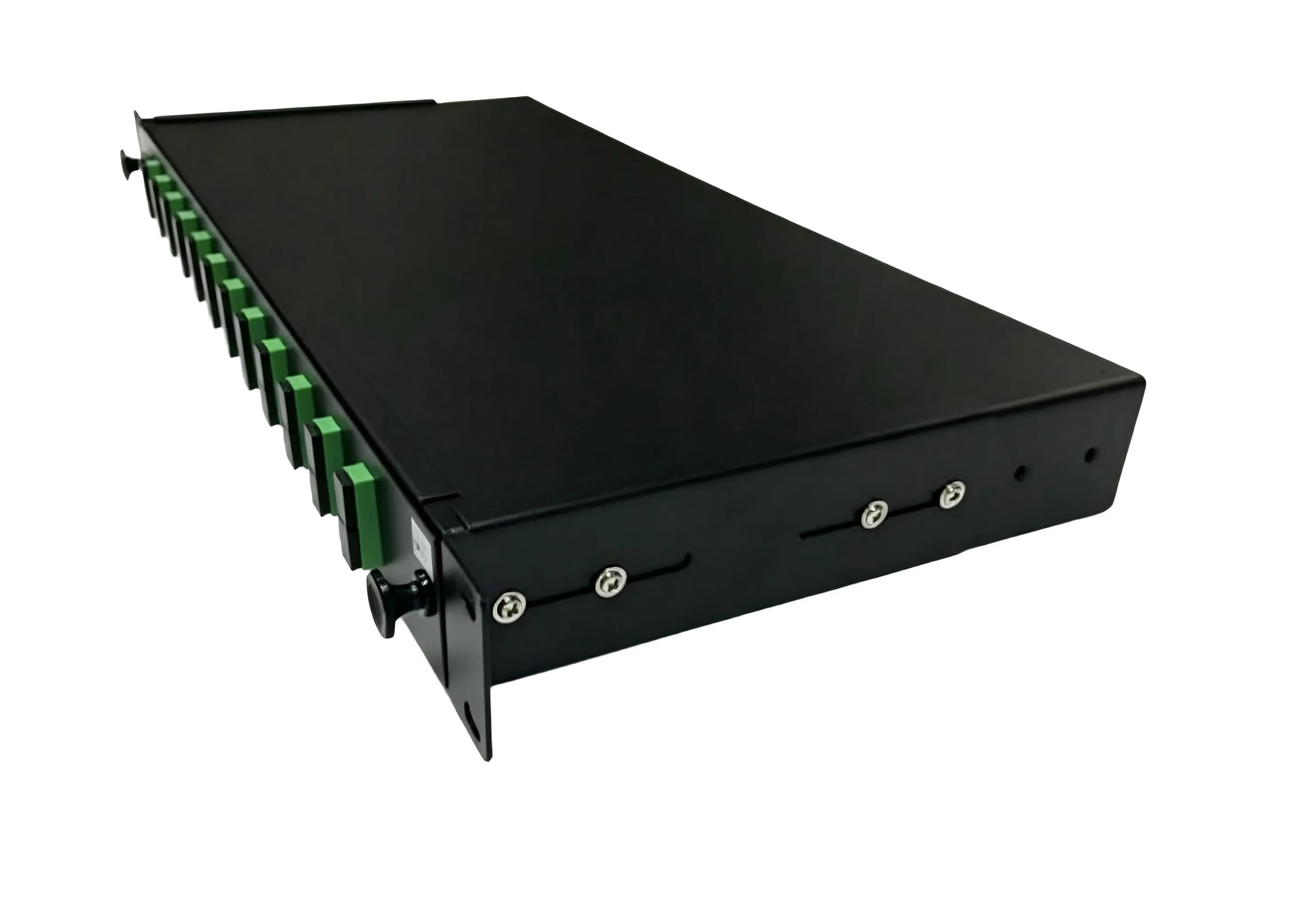

FO Patch Panel Drawer Type 24 Port , 19 inch 1U Rack mounted

Dimension ( L×W×H ):

430mm×205mm×1U

Features

• Premium Material：Cold-rolled steel with electrostatic powder coating; black/white optional

• Rack Mount Design：19'' slidable drawer type (no guide rail), standard cabinet installation

• Large Capacity：Holds up to 2 splice trays, max 48 fibers

• Cable Inlet：4 rear cable holes for 2×M20 & 2×M25 PG glands

• Wide Compatibility：Supports SC/FC/LC/ST adapters; double-layer option for SC/LC

• User Friendly：Compact structure, easy wiring & maintenance

Performance

• Excellent design

• Maximum cores 48

• Fiber lead 、grounding and perfect fixup 、 reliable

• Pigtail fixup reliable and perfect protection

• Apply to extensive field

• Convenient operations and maintenance

Specifications

•  Environment temperature：－25℃～＋45℃

•  Relative humidity：≤85%（30℃）

•  Atmosphere pressure：70～106KPa

•  Insulated Resistance：≥2×10MΩ/500V（DC）

• Intensity≤15KV(DC)/1minno spark-over and no flying arc

• Fiber bending radium guaranteed more than 40mm：≥40mm

Applications

It is applicable for straight-through connection and diverged connection in aerial layout, duct, and direct buried. It can protect fiber connectors.
